CURT 56217 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Toyota Highlander, Lexus RX350

one of the youtube video's on how to use this was wrong on where the parts go. It showed that the parts all went in the back of the SUV. The unit that controls the lights goes up under the dash. There is an multi pin plug up there. Then that unit has to be grounded. I took a nut off a bolt sticking out, clamped a bigger ring connecter and use that as a ground. Also as other people have stated, there is a fuse that goes in the unit itself, and one that has to be put in the fuse box under the hood of the car. It is number 29 in this car and is supposed to be 30 amps. I used a 20 amp as that is the highest I had at the time. I will get 30 amp fuses in case this one blows out. The pigtail goes in the back. There are videos on youtube to show how to get to that. That part is very simple, but you need to know how to get to the plug. Otherwise, it is simple to do it. The hardest part is using zip ties to hold the wires up out of the way by the brake pedal.

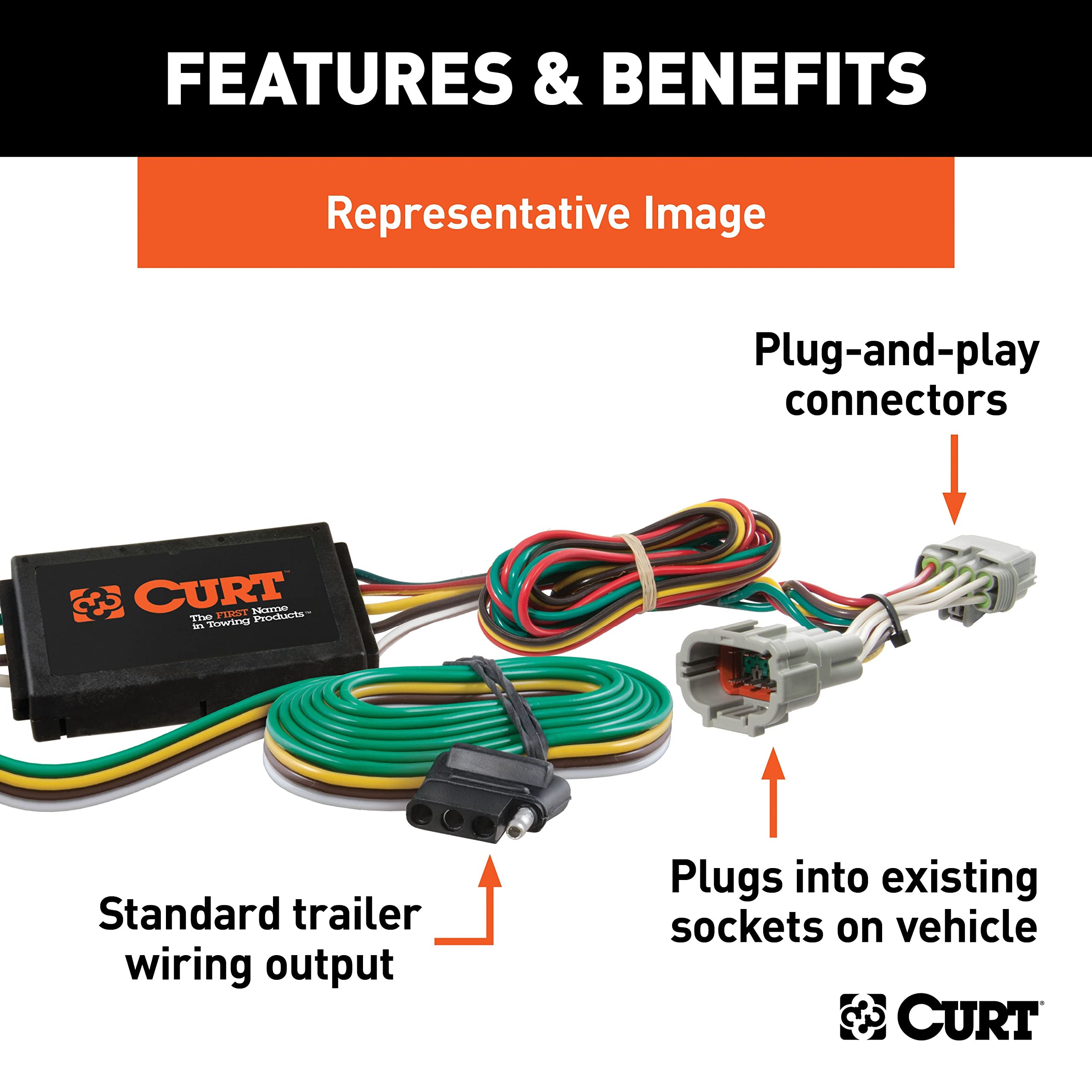

So as most folks said this is very easy to install. I installed it in a 2015 Highlander Hybrid. Plenty of videos on the Internet as to how to reach the wiring in the back of the vehicle so check those out. But there are a few things you should know and reading this should make it easier for you than it was for me. Once you get to the point where you have removed the pieces and hooked up the two connectors, you have two decisions to make. First is whether to drill a hole for the ground wire screw provided or use a screw or bolt already in the vehicle. I chose to drill the hole, sand and that's the best option in my opinion because you don’t need to sand any nuts or screws and you can put that screw where you want it--there are plenty of safe places to drill in the rear near where the adapter plugs in. The second decision is where to put the 4-pin plug (inside or outside the vehicle). I think the best option is to leave it inside the vehicle unless you will be using it a lot. You run it to the compartment where the spare tire tools are. I ran it through the piece of plastic that goes over the battery--see the picture (non-hybrid owners will not have a battery in the back), When you leave it there, it’s easy to get to--you never see it unless you use it and you don't need to worry about running it under the car and mounting it somewhere. Also, if it is outside the vehicle it can corrode, the wires can be cut, it can be damaged, etc. The only downside is it sticks out the back of the vehicle when in use, so if you are anal and don't want to see the wires then run it under and mount it. If you do run it under, the hybrid drain hole is in a different place from regular Highlanders, or at least it was from the one I saw in the video for a non-hybrid. In a hybrid, it is between the battery and the rear at the bottom—you’ll probably need a light to see it. I was confused by a video of a non-hybrid which showed the drain plug against the back of the vehicle (i.e., the hole points out the rear of the vehicle rather than down to the pavement as it is in the hybrid). As to the 10 amp fuse (the one that goes in the vehicle not the inline one in the adapter) the instructions say to consult the manual as to where to put it (there were two in my kit you only need one plus the inline one so you’ll use 2 out of the 3). Well, I could not find where in the manual to put the "trailer" fuse, but I watched the etrailer video and kind of "guessed" where it was from that. First, the fuse box is under the engine hood and it’s the main box (there is more than one) --see the picture as to where that fuse goes. There were only 2 possible places for it and it's the one closest to the front of the vehicle. Next, you must test your installation. If you do not have a trailer to hook up to it (or even if you do) there is a very cheap (under $7) and easy solution. Do yourself a HUGE favor and buy a tester. They are cheap and I don’t care if you are an electrician and have all kinds of ways to test it, this is so easy using a generic tester is not worth the extra trouble to save $7. I bought the SeaSense EZ TROUBLESHOOTER Circuit Tester here on Amazon and highly recommend it. Did I mention you should buy the tester? Finally, once you reconnect the negative post on the battery and clean up, you’ll try to close the hatch door with the button on the door, it is probably going to beep at you and not close. The reason is that you disconnected the battery (assuming you do during installation and you should) with the door open the door "open/close sensor" won’t know whether it's open or closed hence the beeping. Close the door manually and it should work fine after that.

If you are a hesitant DIY'er, don't be. It really is as easy to install as their marketers claim. I read the directions, watched the CURT installation video, and the U-Haul installation video (as mentioned in other reviews), and aside from a final step, I was done in 30 minutes. And I've never installed any kind of wired vehicle product before. The Toyota dealer wanted over $200 just for the OEM wiring harness, plus installation fees. I found an OEM option for $155, but that would also be self-installed. Instead, I bought this CURT model, installed it myself, and saved $120+. One MAJOR note: I have a 2018 Highlander Hybrid, and I needed a 30a fuse, not a 10a like the non-hybrid Highlanders. The kit comes only with 10a fuses, and my Highlander did not have a spare 30a. A quick run to the auto parts store solved that issue. I'm not taking off any stars for this product, however, because it specifically says it is for *some* models of the Highlander, not for all of them. One tip: take the cover off of the fuse housing and bring it into the auto parts store. The cover has spare fuses stored in it, and you can match the size of the fuse exactly. Or save yourself the trip and search for "30 Amp Low Profile Mini Car Fuses" and add them to your Amazon order.

Very easy to install following different youtube videos (Curt, etrailer, etc). For my highlander XLE 2019 it was just plug and play, probably the instructions are not clear but search for a video and you will install it very easy, and most important, IT WORKS! Cheaper that the one the toyota dealership wanted to sell me but with great quality.

Le quedó perfecto a mi highlander 2017 le

Quedo perfecto en Totota Highlander 2019 y viendo el tutoríal de curt en YouTube es muy fácil de instalar siguiendo los pasos 👍🏼 Y a una fracción de lo que cuesta en la agencia

This harness was easy to install on the non trailer package hylander . It is good quality and I would Not hesitate to buy again

Easy installation. Only took me about 15 minutes start to finish. No drilling required. I saw a video on youtube that suggested to drill a hole to connect the ground wire, but I just put it underneath one of the nuts in the trunk area with good metal-to-metal contact. Connected two socket connectors, inserted a tow fuse and voila. IMHO, given the simplicity of the device, it is overpriced.
