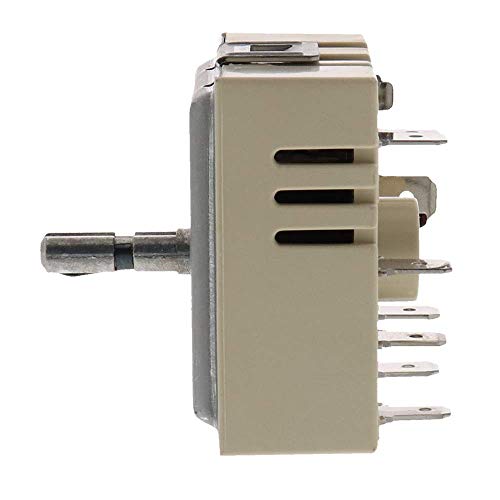

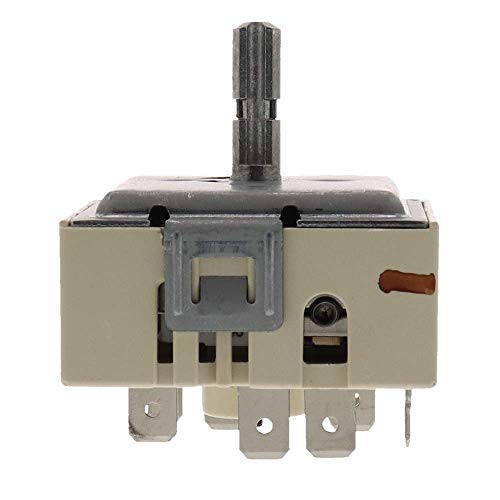

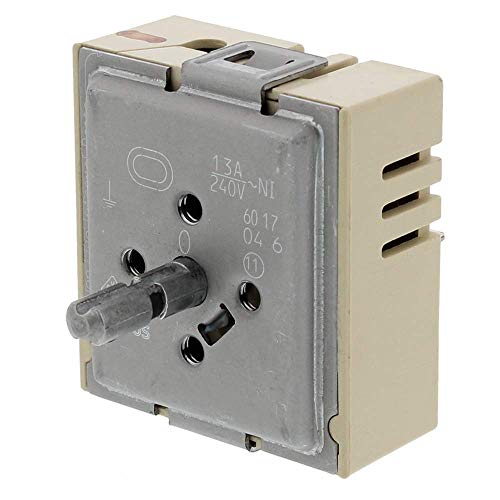

ERP WB24T10153 Range Element Infinite Switch

Easy fix for my stove. Swapped out part in minutes and burner is working great.

Issue: 9" burner (dual) would not operate. Indicator light on stove top was illuminated to warn of "HOT COOKTOP"...but the cooktop was had not been used. Only the 9" burner was not working. All others functioned fine. We opted to replace both the controller (this item) and the dual element. It was obvious upon disassembly that the heat sensing rod and several parts of the nichrome heating wire on the element were damaged/expired. For this reason we replaced the range element controller and the element. Very easy to do. The replacement controller was identical to the one in the stove. Once the electricity was disconnected from the stove, I simply disconnected each wire (one at a time) from the old unit and made the same connection on the new unit. Rinse and repeat until done. You will need a phillips screwdriver. Needle nose pliers are helpful to plug/unplug the spade connectors from their terminals. Worked fine once reassembled and power restored. Wonderful product no doubt, made my day!

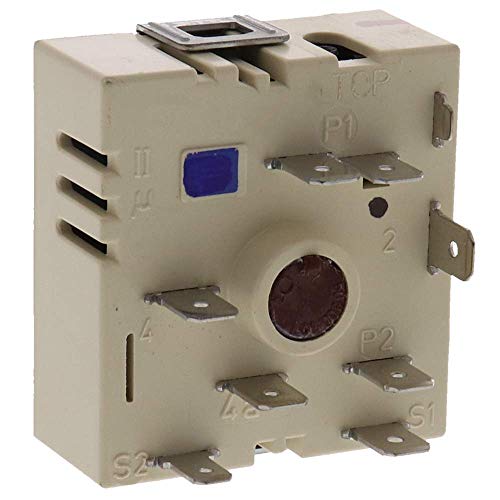

This part is an exact match for my GE Electric Double Oven (Model JB850Sf1SS) . This part repaired the operation of the front left double burner (left most control knob). *Remeber to reuse the copper jumper from the old switch that connects the P2 and S1 connector blades* otherwise, it will not work

Perfect replacement part.

GE stove top burner would not control the temperature, it was always on high heat. This control switch fixed the problem. Now it will go from low to high again. No more burnt dinners.

The switch was a perfect match to the switch in my 15 year old Frigidaire range and installed easily. HOWEVER the problem was the on/off original range knob would not fit onto the knob shaft on the switch. Because the knob is all metal it was impossible to make the hole larger to fit the shaft. 15 years later have the size of the shafts changed?

Works perfectly Our GE range is now 18 years old. Replaced 2 of these, 2 burners and an oven element over the years. Saved me a small fortune over the years and has kept my range/oven working great. Glad to see parts like this available and reasonably priced.

With the cost of new kitchen stoves today and the poor quality of them. We keep ordering parts that keep ours working for less. We love our stove and can’t find one that’s new, that’s just as good. So I go on Amazon find what we need order it. Fix it for less. Not hard working on a electric stove.

This switch is the perfect replacement for the original failed one for my GE stove dual zone hotplate. The shaft length on the new switch was too short for my stove, but luckily it was trivial to exchange it with the one from the original switch. I simply removed the top plate of each switch by releasing the clips on either side with a small screwdriver, after which he shafts came right out and were easily exchanged. Note that the shafts could only be inserted with the correct orientation, making the exchange bomb proof. Wiring the new switch was a simple process of moving the wires one by one from the old switch to the new one. It is currently working as expected and I am delighted with the result. Hopefully it is going to last a long time..

سرعة في التوصيل والقطعة ممتازة

Fait la job

It is the same part which goes in my stove and works great.

Does the job....but fails after 15 months. A part like this needs to be made to last, period.
